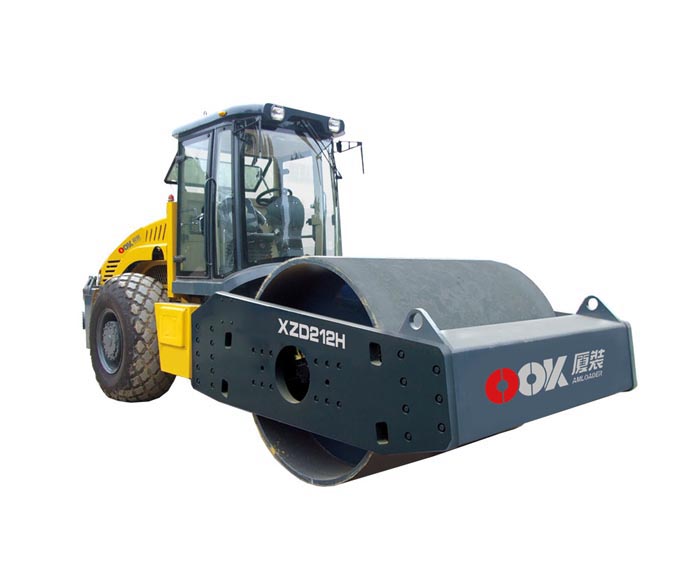

Main Technical Specification For XZ Series Road Roller
|
Model
|
XZD210H
|
XZD212H
|
XZD214H
|
|
工作质量Operating mass
|
10000 kg
|
12000 kg
|
14000 kg
|
|
类型Type
|
Single-drum
|
Single-drum
|
Single-drum
|
|
振动频率Vibration frequency
|
29/35Hz
|
29/35Hz
|
29/35Hz
|
|
激振力Centrifugalforce
|
240/120 kN
|
260/160 kN
|
290/180 kN
|
|
最高行走速度Travel speed
|
12km/h
|
12 km/h
|
12 km/h
|
|
爬坡能力Grade ability
|
35%
|
35%
|
35%
|
|
转弯半径Turning radius
|
6500 mm
|
7000 mm
|
6500 mm
|
|
外形尺寸Overall dimension
|
5630*2260*3000
|
5630*2260*3000
|
6000*2300*3200
|
|
振动轮宽度Vibration round width
|
2100 mm
|
2100 mm
|
2100 mm
|
|
发动机型号Engine model
|
6BT5.9
|
6BT5.9
|
6BT5.9
|
|
发动机功率Engine power
|
75 Kw
|
75 Kw
|
75 Kw
|
|
|
|
|
|
